Model: A4568*1Colour: Silver

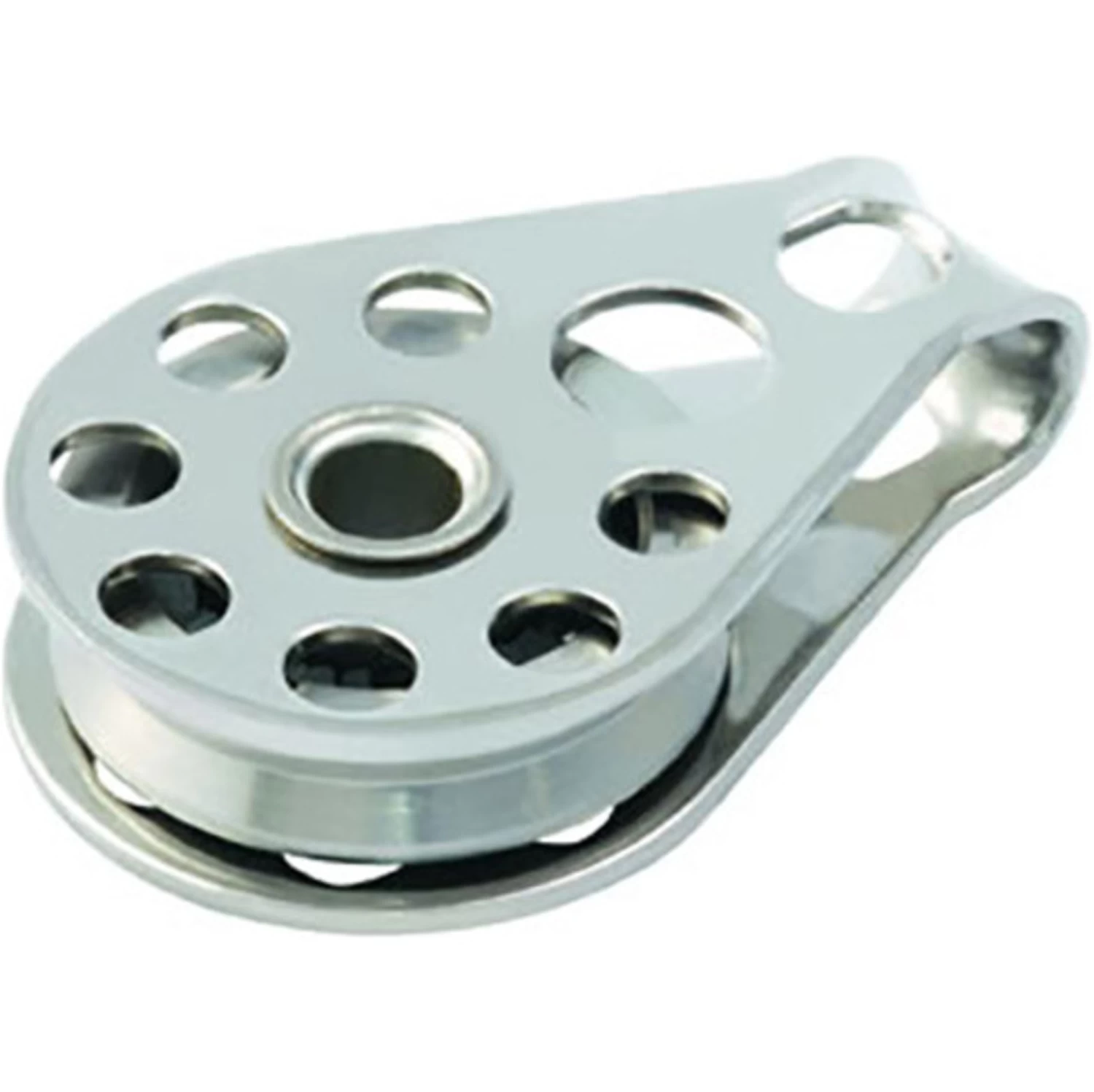

Allen High Tension Blocks are specifically intended for use where wire or Dyneema® lines are subjected to low rotational high loads. The range is made from 316 stainless steel and has a single row of spaced ball bearings in the sheave. Available with different accessories including hooks, beckets, swivels and shackles giving a whole range of choice to suit the application.
| Sheave Diameter (mm) | Length (mm) | Max. Line Diameter (mm) | Shackle Pin (mm) | Breaking Load (kg) | Weight (g) |
| 16 | 29 | 2-4 | 4 | 400 | 11 |
| 25 | 41 | 2-5 | 5 | 750 | 25 |
